廣州新機縫紉機有限公司
會員積分：2587000
會員年度：第14年
誠信企業：已通過實名認證
所在地區：中國 廣東 廣州
詳細地址：廣東省增城市仙村鎮荔新六路5號
網址：www.jianma.com
電話：020-32198132
傳真：020-32198132
郵箱：jianma@21cn.com
產品介紹：
全閉環脈沖馬達始壓倒機構，可切換1段行程到2段行程，容易確認落針點
切線傳動機構，切線后線頭更短， 無需進行摘線頭的操作。全閉環脈沖馬達址接驅動切刀方式， 可連續任意設置多刀切扣眼長度， 震動與噪音更低。
針桿、挑線桿周固不使用機油，不會弄污重要的產品
針桿上部的挑線抨在高速旋轉下產生的引力影響，通過創新加強固定裝置，保證線跡的美觀
通過更接壓腳，鈕擁長度從最短6mm到最長220mm. 在220mm范圍內，通過面板操作，可縫多個扣眼
由于采用電腦伺伏馬達，直接驅動方式， 能快速啟動和終止縫制

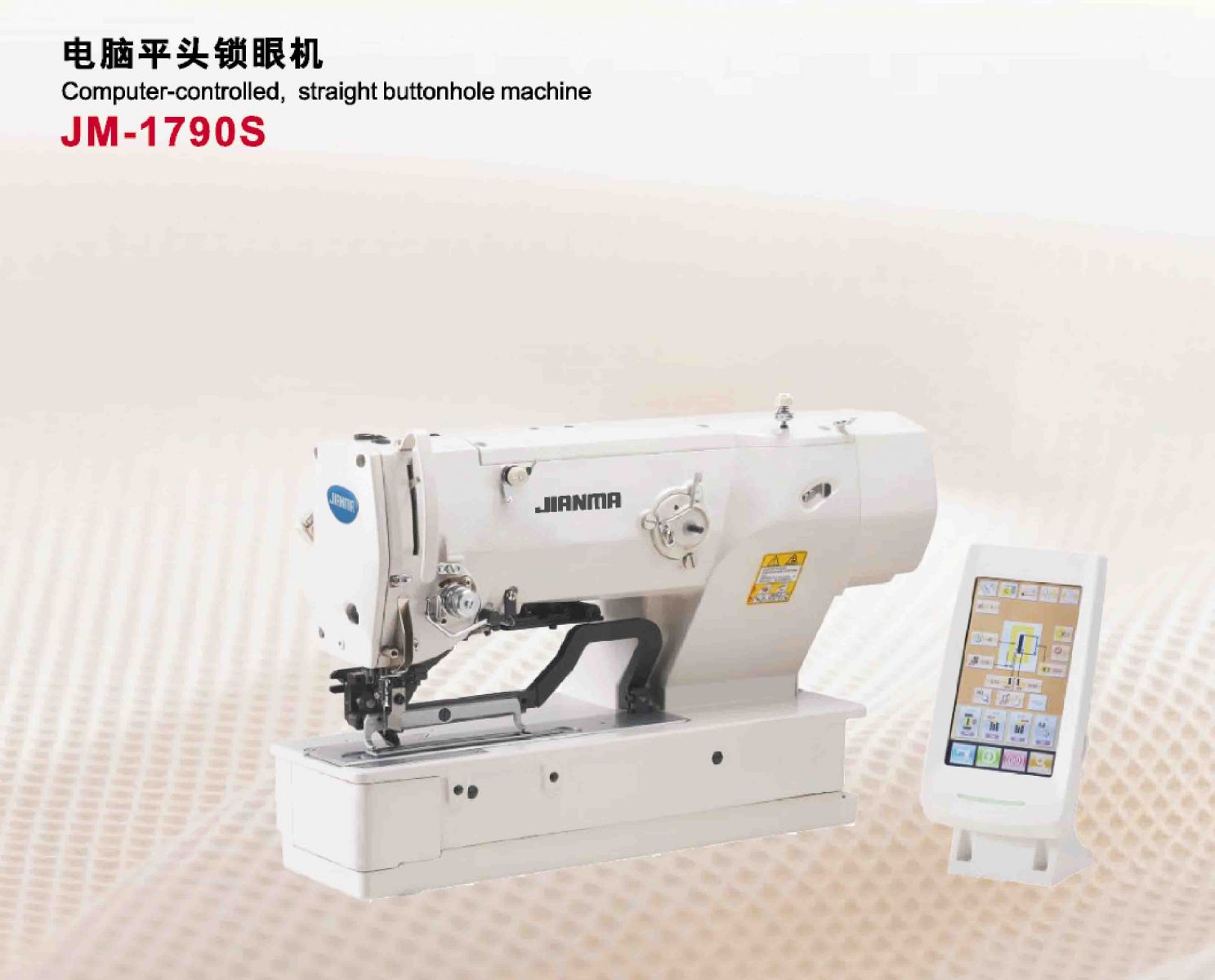

Product Introduction：
Full-closed-Ioop pulse motor pressure-foot lifting mechanism: You can switch the sewing stroke 1 to the sewing stroke 2, easy to find the needle stitch point.
Trimming drive mechanism: Aftertrimming , the thread end is still shorter. Not need the thread end trimming again.
Full-closed-Ioop pulse motor drive cutting mode: You can set up Multi-knife button-hole length continuously.
The vibration and noise of needle bar is lower ,
Around the take-up lever it don't need oil, so that it don’t soil the important product
The innovative enhanced firm mechanism can ensure beautiful stitch without tractive force influence ofthe take-up lever high-speed rotation above the needle bar.
By replacing the presser foot, button length range can fit from the shortest 6mm to the longest 220mm.Through panel operation, a few but!onholes can be sewn. Because of the use of computer servo motor, direct-drive mode can quickly start and stop sewing operation.
