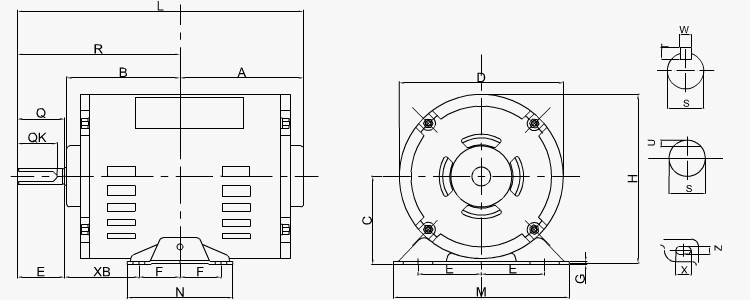

| Model | Output | Pole | Frame | Fig | Motor | Shaft End | |||||||||||||||||||
| A | B | C | D | E | F | G | H | L | M | N | X | XB | Z | Q | QK | R | S | T | U | W | |||||
| YUG | 1/8 | 4 | 1 | 95 | 81 | 63 | 120 | 56 | 45 | 2.5 | 123 | 215 | 140 | 100 | 11.5 | 38 | 7 | 30 | 27 | 113 | 12 | - | 1 | - | |
| 1/4 | 4 | 1 | 95 | 88 | 71 | 132 | 56 | 45 | 2.5 | 136.8 | 215 | 148 | 110 | 18 | 45 | 7 | 30 | 27 | 120 | 14 | - | 1 | - | ||
| 1/3 | 4 | 1 | 105 | 88 | 71 | 132 | 56 | 45 | 2.5 | 136.8 | 225 | 148 | 110 | 18 | 45 | 7 | 30 | 27 | 120 | 14 | - | 1 | - | ||
| 1/2 | 4 | 1 | 130 | 98 | 80 | 140/145 | 62.5 | 50 | 2.5 | 269 | 165 | 130 | 10 | 50 | 10 | 40 | 28 | 139 | 16 | 5 | 3 | 5 | |||
| 型號 | 電壓 | 頻率 | 輸出功率 | 轉速 | 效率 |
|
|
堵轉電流 | |||||
| W | HP | ||||||||||||
| YUG6322 | 220 | 50 | 120 | 1/6 | 2850 | 57 | 1.4 | 1.8 | 14 | ||||
| YUG7022 | 180 | 1/4 | 61 | 1.3 | 17 | ||||||||
| YUG7032 | 250 | 1/3 | 66 | 1.1 | 22 | ||||||||
| YUG7042 | 400 | 1/2 | 67 | 1.1 | 30 | ||||||||
| YUG8062 | 550 | 3/4 | 70 | 1.1 | 42 | ||||||||
| YUG8072 | 750 | 1 | 72 | 0.9 | 55 | ||||||||
| YUG6314 | 90 | 1/8 | 1420 | 44 | 1.5 | 1.8 | 11 | ||||||
| YUG6324 | 120 | 1/6 | 51 | 1.6 | 13 | ||||||||
| YUG7024 | 180 | 1/4 | 55 | 1.4 | 18 | ||||||||
| YUG7034 | 250 | 1/3 | 58 | 1.3 | 23 | ||||||||
| YUG8044 | 400 | 1/2 | 63 | 1.2 | 32 | ||||||||
| YUG8054 | 550 | 3/4 | 69 | 1.1 | 43 | ||||||||
